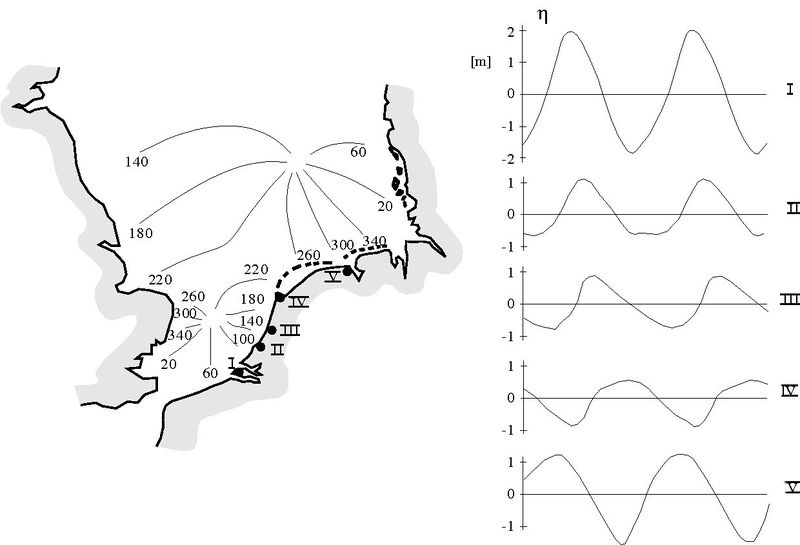

Left panel: Co-tidal lines of the M2-tidal wave in the North Sea. The tidal wave enters mainly from the north, follows the UK coast at the right hand and returns along the Dutch, German and Danish coast. The amphidromic point in the central North Sea is shifted cyclonically with respect to the propagation direction of the incoming tidal wave. In the southern North Sea, the tide is influenced by the tidal wave entering through the Channel; this explains why the amphidromic point is not shifted toward the Dutch coast. Right panel: Tide curves along the Dutch coast at locations I-V. Tidal asymmetry (faster tidal rise and slower tidal fall) increases along the propagation direction (from I-IV). At location V the asymmetry has vanished, because the tide is mainly determined by the amphidromic system of the central North Sea.
