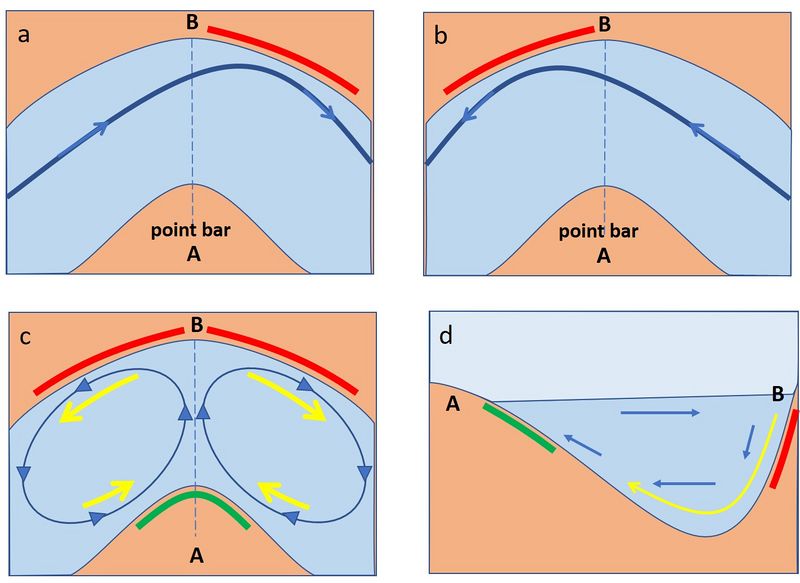

Schematic representation of tidal flow and sediment transport in a channel bend. a: flood flow path; b: ebb flow path; c: horizontal pattern of residual fluid flow (blue) and net sediment transport (yellow); d: cross-channel pattern of residual flow (blue) and net sediment transport (yellow). Red = erosion; Green=accretion.
