What are ecological thresholds?

Ecological thresholds[1] have been defined as tipping points where a change in environmental conditions (disturbance) causes an abrupt shift in ecosystem state (structure) and function. Such an abrupt shift is called a regime shift when the ecosystem does not respond, or responds only with great delay to the removal of the disturbance. Persistent gradual change in environmental conditions can bring an ecosystem close to a threshold where a small perturbation can produce large responses in the ecosystem (Groffman et al., 2006[1]; Scheffer, 2009[2]). These kind of dramatic shifts have been documented for many systems; from rapid eutrophication of coastal waters to structural changes in fish communities. Trespassing of thresholds may have serious economic consequences (Barbier 2007[3]; Taylor et al., 2006[4]).

(Modified from Folke et al., 2002[5])

Ecosystem Alternative 1 Alternative 2
Freshwater systems Clear water, Benthic vegetation Turbid water, Blue-green algae
Oligotrophic macrophytes and algae Cattails, and Blue-green algae
Game fish abundant Game fish absent
Marine Systems Hard coral Fleshy algae
Kelp forests Urchin dominance
Seagrass beds Algae and muddy water

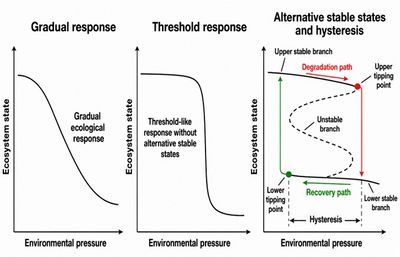

Despite their intuitive appeal, it is difficult to define thresholds precisely. Ecological thresholds do not just refer to sudden jumps in a time series. In a mathematical description, thresholds are related to the nonlinear response of an ecological or biological system to pressures caused by human activities or natural processes. Ecological or biological systems are typically complex dynamic systems characterized by nonlinear dynamics, with possibilities for alternative stable state, thresholds (tipping points) and regime shifts, which may preclude a return to the previous state. In nonlinear mathematical models, regime shifts are associated with critical or bifurcation points, and are referred to as critical transitions (Scheffer, 2009[2]). The notion of 'stable state' should not be confounded with 'steady state'. Due to the energy flow through the system (food, light, water motion), an ecosystem moves around stable states (so-called attractors), even without any change in external environmental conditions. It may therefore be preferable to speak of multiple attractor regimes rather than multiple stable states (Scheffer and Carpenter, 2003[6]). See also the article Resilience and resistance.

In models, it is possible to determine the exact threshold, but regime shifts in nature occur within ranges of pressures and not at an exactly specifiable point (Huggett, 2005[7]). Another important characteristics is hysteresis, which means that the state of a system depends on its history. For instance, mesocosm experiments have shown that when changing the order in which a system is colonized from a common species pool, a different 'stable' ecosystem community may result that is resistant against colonization by other species from the pool[8]. Even when a change is not irreversible, the return path from an altered state towards the original state can be drastically different from the development that lead to the altered state.

Analyses of thresholds should also recognize the possibility of interacting ecological regime shifts at different scales. Regime shifts in coastal areas can be triggered by processes in the open sea and by processes in the water shed. Coastal lagoons and enclosed seas often have large drainage areas relative to the sea surface. For example, the drainage area of the Baltic Sea covers 1,700,000 km2, or more than four times the entire sea area (415, 266 km2). Changes that originate in land use can cause trespassing of ecological thresholds in the coastal waters. Hysteresis effects mean that reductions in, for example, nutrient inputs do not necessarily induce an immediate response (Stålnacke, 2005[9]).

Climate-induced regime shifts

The case of the sudden transition of the Sahara from a vegetated wet land to a dry and barren desert some 5500 years ago is a typical example of a regime shift (Foley et al., 2003[10]).

In the marine environment, regimes may last for decades or even centuries and natural shifts have often been linked to changes in climatic conditions. Climatic changes and human pressures appear to be the main triggering factors causing ecosystem regime shifts. For instance, increased sea surface temperature and possibly change in wind intensity triggered a change in the location of an oceanic bio-geographical boundary along the European continental shelf in the 1970 in western European basin (Beaugrand, 2004[11]). This in turn affected different components of North Sea marine ecosystems. Model simulations provide some evidence that sustained CO2 emissions and global warming will cause a regime shift in the oceans with oxygen levels dropping drastically and many species failing to survive (Petrovskii et al., 2017[12]; Baroni et al., 2020[13]).

Regime shifts in coastal waters

While there are well-documented regime shifts in coastal waters, the phenomenon is probably more common and will likely become even more frequent as ecosystems face increasing pressures (Walker and Meyers, 2004[14]). Some of the mechanisms underlying regime shifts are fairly well known, see for example Table 1. The loss of plant communities on the sea floor can be attributed to increasing nutrient concentrations that stimulate the growth of phytoplankton and epiphytic algae, and their expansion in turn shades seagrasses and macroalgae (Krause-Jensen et al., 2008[15]). A threshold of light attenuation of 0.27-1 m has been observed, setting a depth for seagrass in the Mediterranean Sea (Duarte et al., 2007[16]). The Black Sea provides examples of changes that clearly have been caused by human pressures (Daskalov et al 2007[17]).

Similarly, an analysis of a large dataset from Danish coastal waters demonstrates that the cover of macroalgal communities in deeper water decreases markedly along an eutrophication gradient (Krause-Jensen, 2007[18]). The analysis indicates that algal abundance initially responded slowly to increasing eutrophication, but showed a more marked response at nitrogen concentrations around 35-40 µM, indicating a shift between two alternative states of the macroalgal community.

In the Ringkøbing Fjord on the west coast of Denmark transitions that indicate thresholds are driven by sluice management that affects the salinity (Hakanson and Bryhn, 2007[19]). From 1995 to 1997, a dramatic change took place because of a change in water salinity related to the implementation of a new sluice practice. The ecosystem changed from a nutrient-driven turbid green water to a grazing-controlled clear water.

Regime shifts can also occur when a keystone species is eliminated from an ecosystem (see the article Trophic cascade) or when an alien species is introduced (see the article Non-native species invasions).

Implications for management

Regime shift and thresholds can have major implications for ecosystem management (Petersen et al., 2005[20]). Regime shifts linked to human pressures are generally viewed as a change from a healthy to an unhealthy state of the ecosystem (Rapport, 2007[21]). In some cases, matters are complicated by the fact that a change that is perceived to be adverse from one perspective may turn out to be beneficial from another. For example, the Ringkøbing fjord is now closer to many environmental objectives, even though the improvements were not caused by a reduction of anthropogenic pressures, such as nutrient discharges. However, the southern part of the lagoon is designated as a Ramsar[2] site and as a Special Bird Protection Area[3]. Several bird species used to forage on the water vegetation, which has decreased dramatically. Return to the previous turbid green state would be an obligation from the perspective of bird protection, but would not be admissible under the European Union Water Framework Directive. Complex interactions with different consequences and management implications have also been documented for coral reefs (Knowlton and Jackson, 2008[22]) and fisheries (Burgess et al., 2003[23]). Resolving conflicts between conservation goals and the livelihoods of local communities is a major challenge for reef management today.

Related articles

Resilience and resistance
Trophic cascade
Disturbances, biodiversity changes and ecosystem stability
Species extinction
Biodiversity and Ecosystem function
Thresholds and Marine Policies
Sustainability indicators


  1. Groffman, P., Baron, J., Blett, T., Gold, A., Goodman, I., Gunderson, L., Levinson, B., Palmer, M., Paerl, H., Peterson, G., LeRoy Poff, N., Rejeski, D., Reynolds, J., Turner, M., Weathers, K., & Wiens, J.2006 Ecological thresholds: the key to successful environmental management or an important concept with no practical application? Ecosystems 9(1):1–13
  2. 2.0 2.1 Scheffer, M. 2009. Critical transitions in nature and society. Princeton University Press, Princeton, New Jersey, USA
  3. Barbier E.B. (2007) Valuing ecosystem services as productive inputs. Economic Policy 22(49): 177–229
  4. Taylor T., Markandya A. & Walton H. (2006). Review of literature on valuation of coastal ecosystem services. Thresholds of Environmental Sustainability. EU FP6 Integrated Project. Project contract no. 003933. Deliverable 1.3.
  5. Folke, C., Carpenter, S., Elmqvist, T., Gunderson, L., Holling, C.S. and Walker, B. 2002. Resilience and Sustainable Development: Building Adaptive Capacity in a World of Transformations. AMBIO A Journal of the Human Environment 31(5): 437-40
  6. Scheffer, M. and Carpenter, S. R. 2003. Catastrophic regime shifts in ecosystems: Linking theory to observation. Trends in Ecology and Evolution 18: 648–656
  7. Huggett A. 2005. The concept and utility of "ecological thresholds" in biodiversity conservation. Biological Conservation 124(3):301–310
  8. Drake, J.A., Huxel, G.R. and Hewitt, C.L. 1996. Microcosms as models for generating and testing community theory. Ecology 77: 670–677
  9. Stålnacke P. 2005. Time scale in nutrient fate: examples from Eastern Europe. In: Proceedings of International Workshop on "Where Do Fertilizers Go", ISPRA, Italy, 28-29 June 2005
  10. Foley, J.A., Coe, M.T., Sheffer, M. and Wang, G. 2003. Regime shifts in the Sahara and Sahel: Interactions between Ecological and Climatic Systems in Northern Africa. Ecosystems 6(6): 524-539
  11. Beaugrand, G. 2004. The North Sea regime shift: Evidence, cause, mechanisms and consequences. Progress In Oceanography 60(2-4): 245-262
  12. Petrovskii, S., Sekerci, Y. and Venturino, E., 2017. Regime shifts and ecological catastrophes in a model of plankton-oxygen dynamics under the climate change. J. Theor. Biol. 424: 91–109
  13. Baroni, I.R., Palastanga, V. and Slomp, C.P. 2020. Enhanced Organic Carbon Burial in Sediments of Oxygen Minimum Zones Upon Ocean Deoxygenation. Front. Mar. Sci. 6:839. doi: 10.3389/fmars.2019.00839
  14. Walker, B. and Meyers, J. 2004. Thresholds in ecological and social–ecological systems: a developing database. Ecology and Society 9(2): 3–9
  15. Krause-Jensen, D., Sagert, S., Schubert, H. and Boström, C. 2008. Empirical relationships linking distribution and abundance of marine vegetation to eutrophication. Ecological Indicators 8(5): 515-529
  16. Duarte, C.M., Marba, N., Krause-Jensen, D. and Sanchez-Camacho, M. 2007. Testing the predictive power of seagrass depth limit models. Estuaries and Coasts 30(4): 652–656
  17. Daskalov, G.M., Grishin, A.N., Rodionov, S. and Mihneva, V. 2007. Trophic cascades triggered by overfishing reveal possible mechanisms of ecosystem regime shifts. PNAS 104 (25): 10518-10523
  18. Krause-Jensen, D., Middelboe, A., Carstensen, J. and Dahl, K. 2007. Spatial patterns of macroalgal abundance in relation to eutrophication. Marine Biology 152(1): 25–36
  19. Hakanson, L. and Bryhn, A. 2007. Goals and remedial strategies for water quality and wildlife management in a coastal lagoon: a case study of Ringkoebing Fjord, Denmark. Journal of Environmental Management 86(3): 498-519
  20. Petersen, J., Hansen, J., Laursen, M., Clausen, P. and Conley, D. 2005. Regime shift in a coastal marine ecosystem. Paper presented at the summer meeting of the American Society of Limnology and Oceanography (ASLO). June 19–24, Santiago de Compostela, Spain
  21. Rapport, D.J. 2007. Sustainability science: an ecohealth perspective. Sustainability Science 2(1): 77-84.
  22. Knowlton, N. and Jackson, J.B.C. 2008. Shifting baselines, local impacts, and global change on coral reefs. PLoS Biol 6(2): e54 doi:10.1371/journal.pbio.0060054
  23. Burgess, D., Mous, P., Linden, O. and Obura, D. 2003. When fishing grounds are closed: Developing alternative livelihoods for fishing communities. MPA NEWS 5(2): August 2003

The main author of this article is Aberra, Zelealem
Please note that others may also have edited the contents of this article.

Citation: Aberra, Zelealem (2020): Ecological thresholds and regime shifts. Available from [accessed on 1-03-2024]
